Running Fldigi Flmsg and Flwrap on the Raspberry Pi 2

Updating Raspbian Jessie

This will update the operating system with the latest security updates and software patches. Raspbian Jessie is a Debian operating system so the apt package manager is used.

To build Fldigi from source, the dependencies will need to be installed. The source repositories need to be enabled.

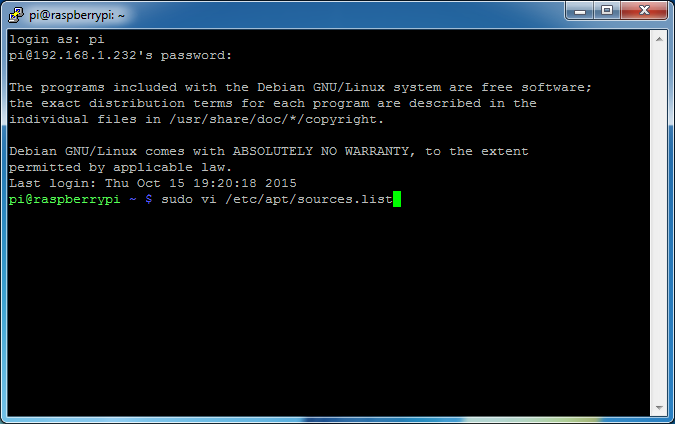

fldigi-pi-05_update_raspbian-01_edit_sources_list

Connect via SSH to the Pi.

Enable the source repositories by entering

sudo vi /etc/apt/sources.list

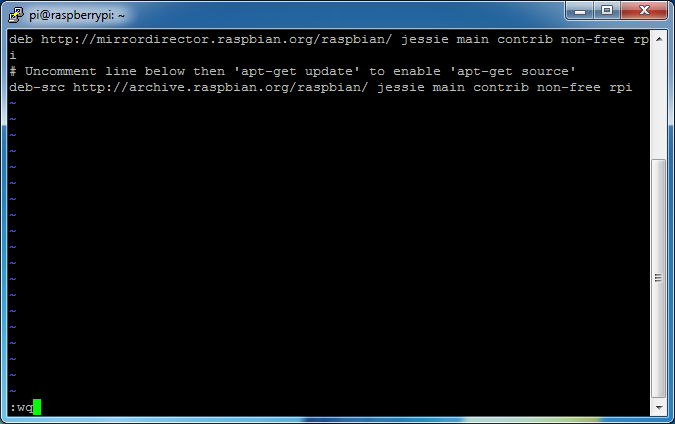

fldigi-pi-05_update_raspbian-02_enable_source_repository

Arrow down to the 3rd line that begins deb-src.

Place the cursor over the “#” (comment indicator) and press the “x” key to remove it.

Then have VI save (write) and quit by typing

:wq

Press Enter.

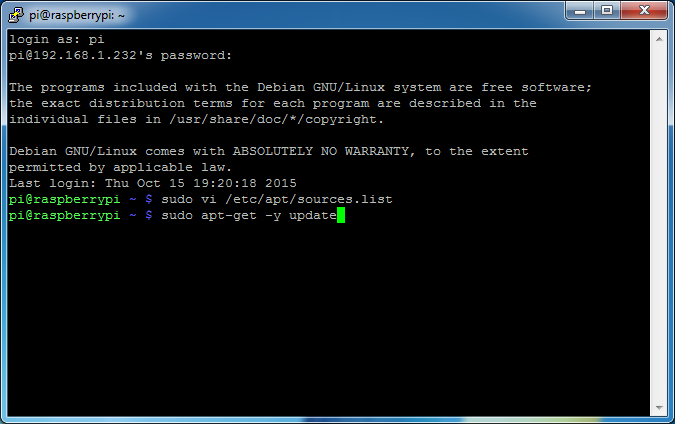

fldigi-pi-05_update_raspbian-03_apt-get_update

Update the repository archives by entering

sudo apt-get -y update

sudo: runs the package manager as the superuser to avoid any permission issues.
apt-get: is the name of the Debian package manager executable.
-y: with this option, apt-get automatically assumes the default answer to any apt-get prompts.
update: tells the package manager to download the list of available packages from the repositories. It does not update any software or packages.

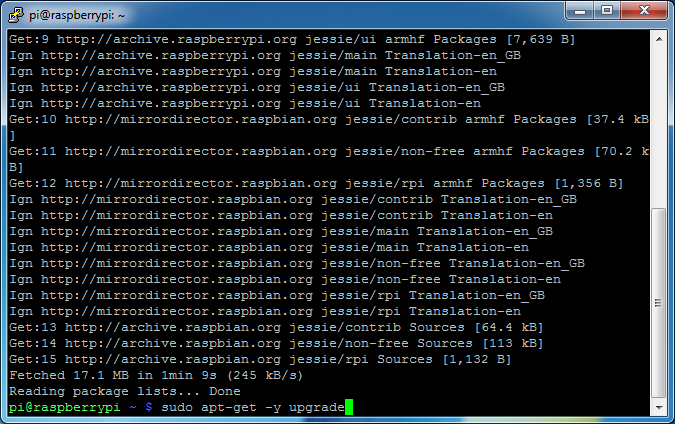

fldigi-pi-05_update_raspbian-04_apt-get_upgrade

Once complete, update the installed packages by entering

sudo apt-get -y upgrade

sudo: runs the package manager as the superuser to avoid any permission issues.
apt-get: is the name of the Debian package manager executable.
-y: with this option, apt-get automatically assumes the default answer to any apt-get prompts.
upgrade: downloads and installs any updates to packages the manger knows about by way of the repository lists downloaded earlier.

This may take some time depending on the updates that need to be applied.

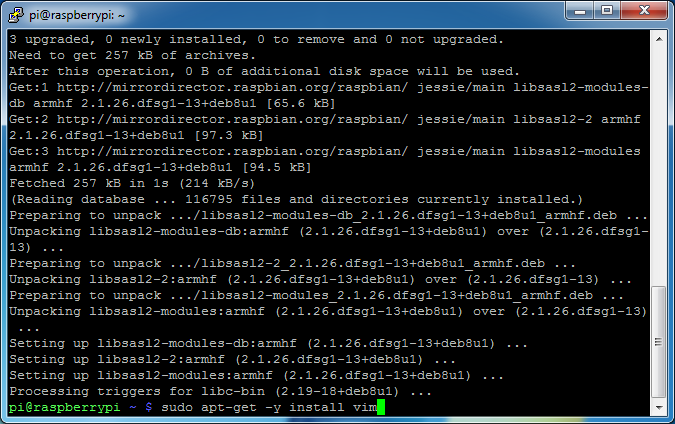

fldigi-pi-05_update_raspbian-05_apt-get_install_vim

I’m installing my favorite editor vim (Vi IMproved).

sudo apt-get -y install vim

sudo: runs the package manager as the superuser to avoid any permission issues.
apt-get: is the name of the Debian package manager executable.
-y: with this option, apt-get automatically assumes the default answer to any apt-get prompts.
install: downloads and installs the package if it is not already.
vim: the name of the package(s) to be installed.

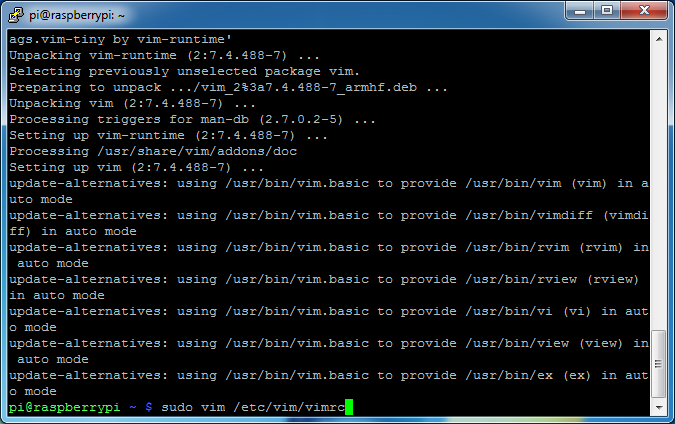

fldigi-pi-05_update_raspbian-06_edit_vimrc

I turn on colors in VIM known as syntax highlighting by entering

sudo vim /etc/vim/vimrc

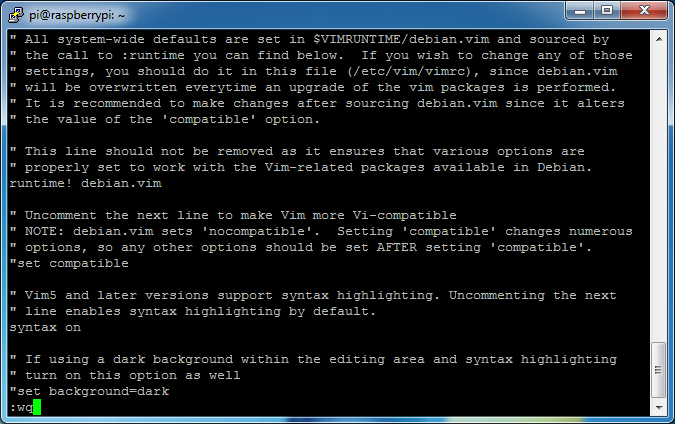

fldigi-pi-05_update_raspbian-07_vimrc_syntax_on

Arrow down to the 19th line that begins “syntax on.

Place the cursor over the “” (comment indicator) and press the “x” key to remove it.

Then have VIM save (write) and quit by typing

:wq

Press Enter.

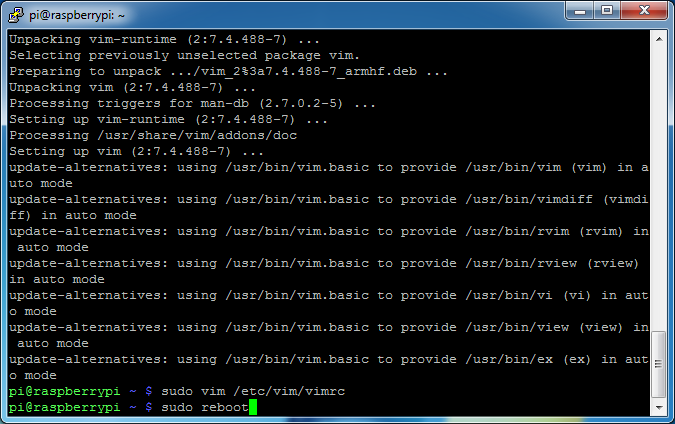

fldigi-pi-05_update_raspbian-08_reboot

It’s a good idea to reboot after upgrading.

sudo reboot

Other bits

Other distributions of Linux have different repositories available to the package manager. When editing the sources.list on other distributions, the source line will be different. Look for deb-src lines with the code-name of the distribution and ‘main’ on the line (as opposed to ‘security’ or others).

If the downloading of the packages goes incredibly SLLLOOW, consider adding a Raspbian Mirror to the sources.list file.
