P25 Trunked Tracking and Decoding with RTL-SDR, Unitrunker, and DSDPlus

DSDPlus

DSDPlus takes the received RF signal and decodes the metadata and plays the voice calls through the speakers.  It can decode many digital voice formats including D-STAR, NXDN4800, NXDN9600, DMR/MotoTrbo, P25 Phase I, X2-DTMA, and ProVoice.

p25_trunk_tracking-03_dsdplus-01_radio_reference_wiki_dsdplus

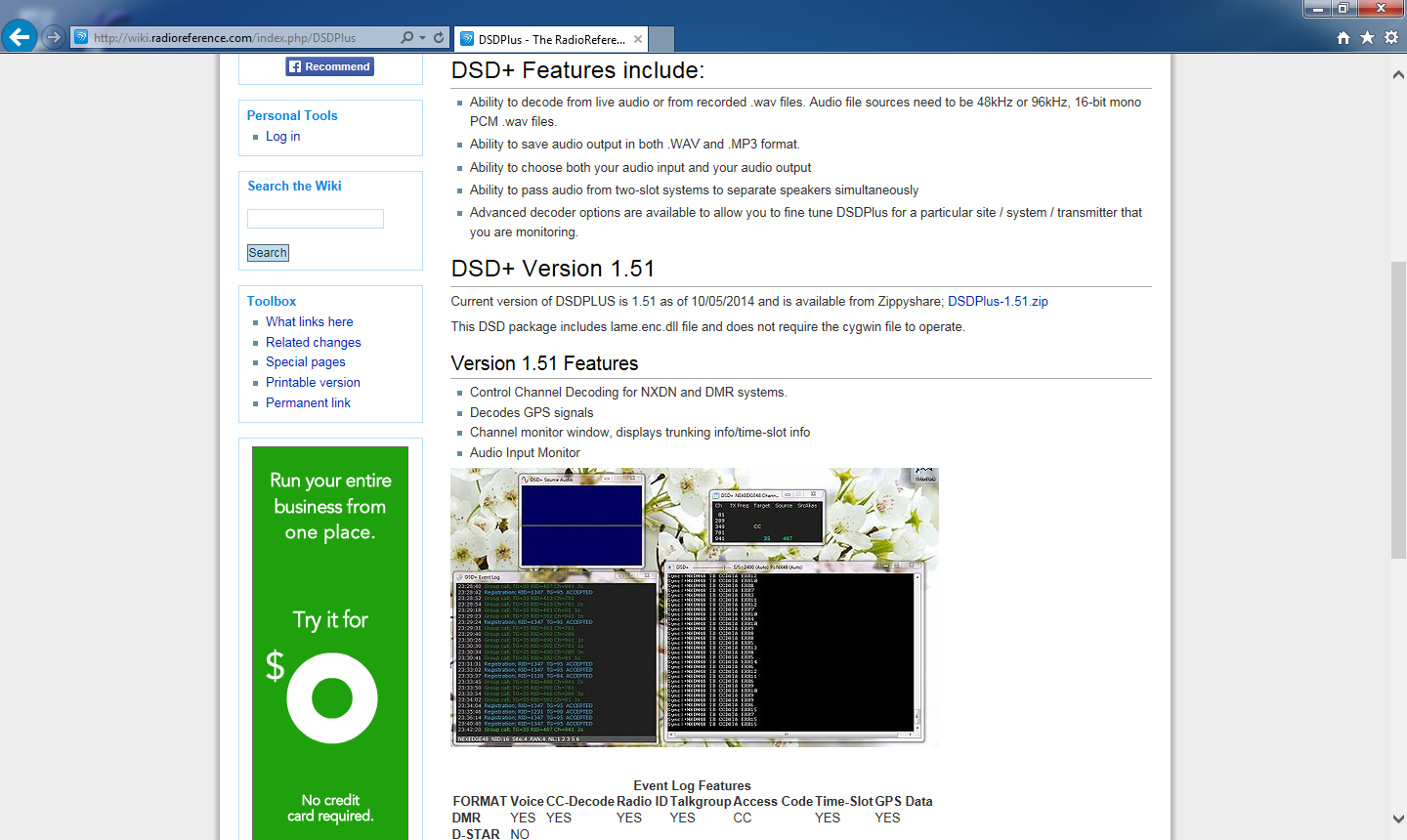

Go to http://wiki.radioreference.com/index.php/DSDPlus.

Under DSD+ Version 1.51, click the download link.

p25_trunk_tracking-03_dsdplus-02_dsdplus_download

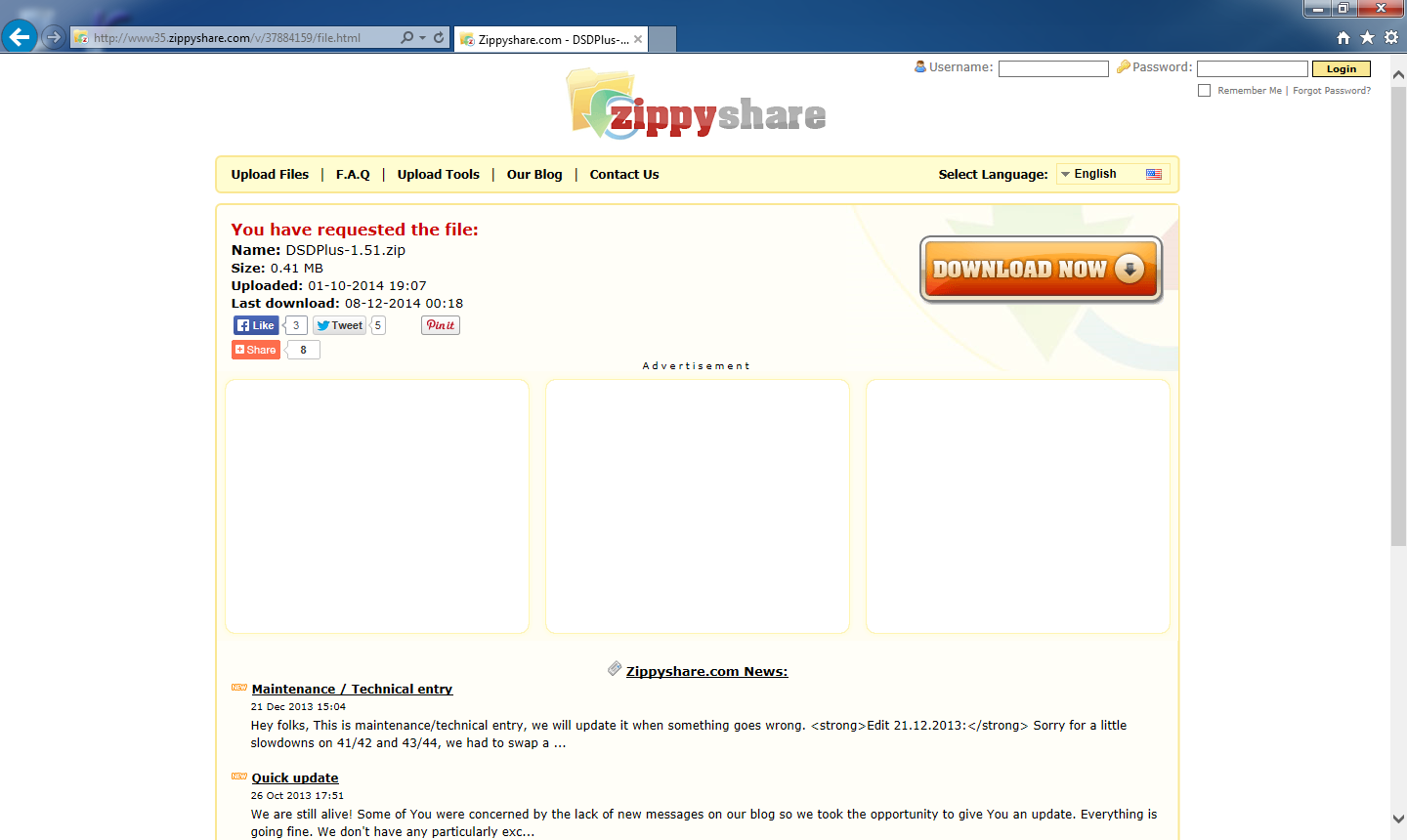

You will be taken to a download service.  Click Download Now.  Save it in your Downloads folder.

p25_trunk_tracking-03_dsdplus-03_extract_dsdplus

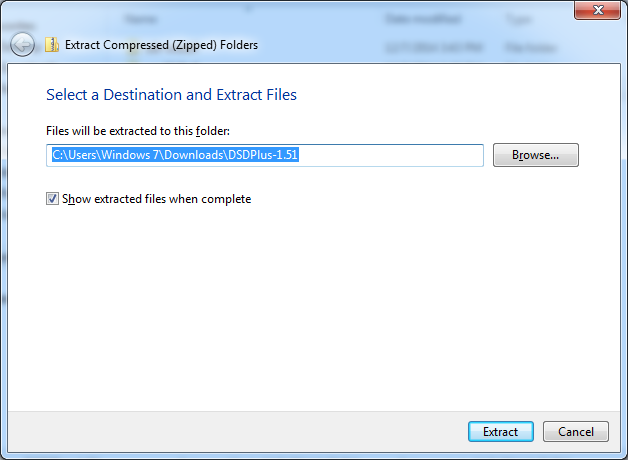

Extract the DSDPlus-1.51 zip file using the Windows compressed folder utility or 7-Zip. Right-click on the compressed folder and click Extract All.

p25_trunk_tracking-03_dsdplus-04_dsdplus_listing

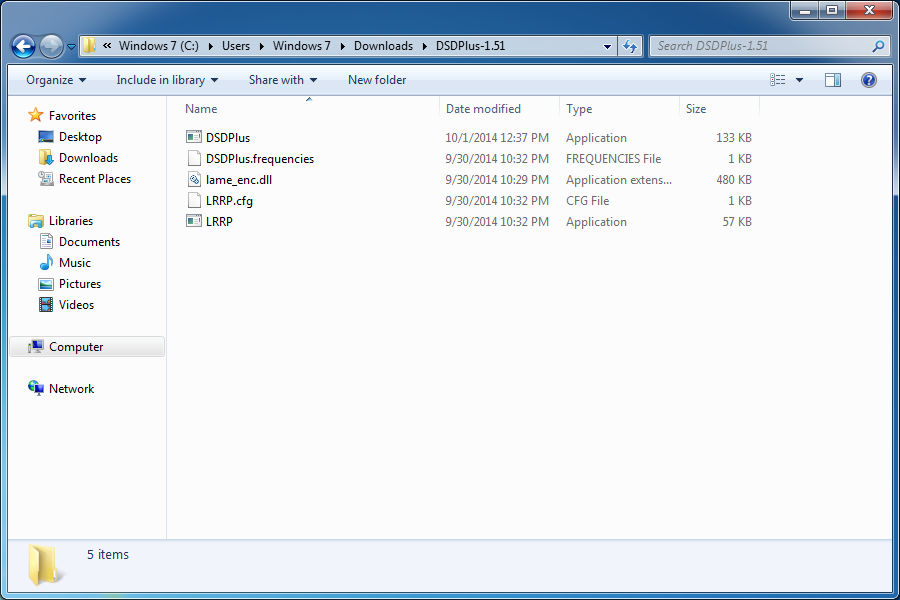

A new window will open.  Double-click DSDPlus.

p25_trunk_tracking-03_dsdplus-05_file_open_warning_dsdplus

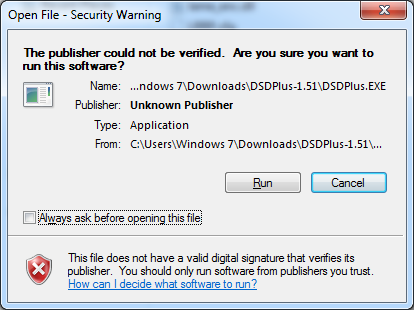

Hate these things.  Uncheck Always ask before opening this file.

Click Run.

p25_trunk_tracking-03_dsdplus-06_dsdplus_input_output_devices

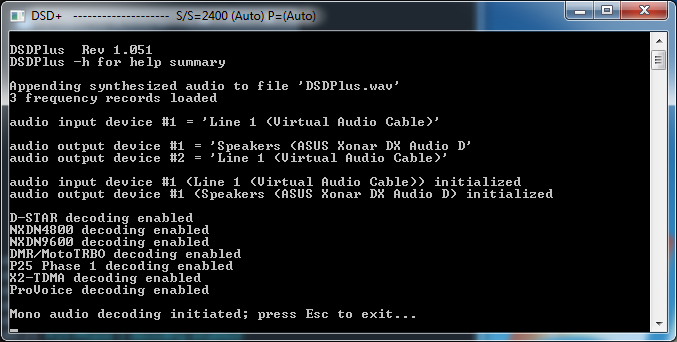

A total of 4 windows will open.  This window will display the input and output device numbers for enabled audio devices on the computer system.  The Virtual Audio Cable device is input device #1.  The audio out (speakers) is output device #1.  These numbers sometimes change if sound devices are added, removed, or defaults are changed.

Note these device numbers.

Close DSDPlus.

p25_trunk_tracking-03_dsdplus-07_control_panel_folder_options_hide_extensions

To create this next part, you will need to show the extension of known files in Windows.  This is off by default.

Click the Start orb.

Click Control Panel.

If you are in category mode, click Appearance and Personalization.

Click Folder Options.

Click the View tab.

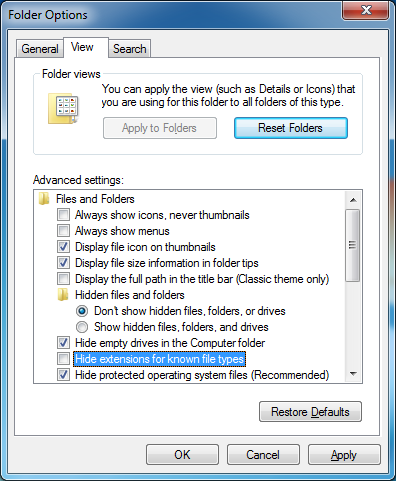

Under Advanced Settings, uncheck Hide extensions for known file types.

Click OK.

p25_trunk_tracking-03_dsdplus-08_dsdplus_listing

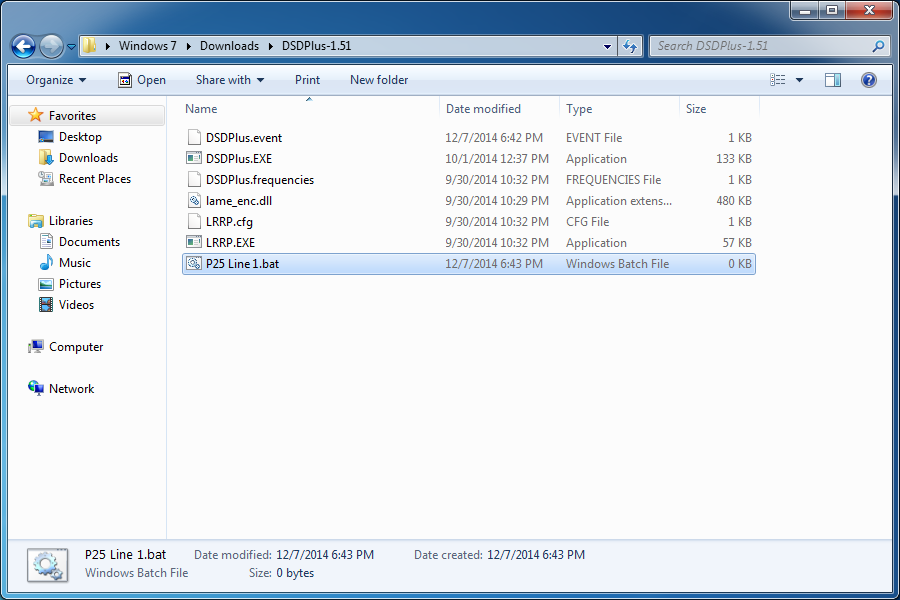

Right-click in the directory listing, select New.

Click Text Document.

Enter P25 Line 1.bat.  Remove the .txt ending (extension).

p25_trunk_tracking-03_dsdplus-09_change_extension_warning

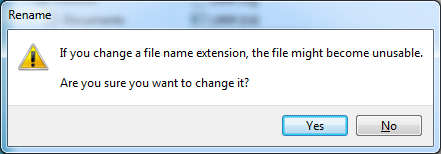

You will get this message about changing the extension.  Click Yes.

At this point, if you changed the Folder Options to Unhide Extensions of known type, you can change it back.  Click OK on Folder Options and close the Control Panel.

p25_trunk_tracking-03_dsdplus-10_dsdplus_line1_batch_file

Right-click P25 Line 1, and click Edit.

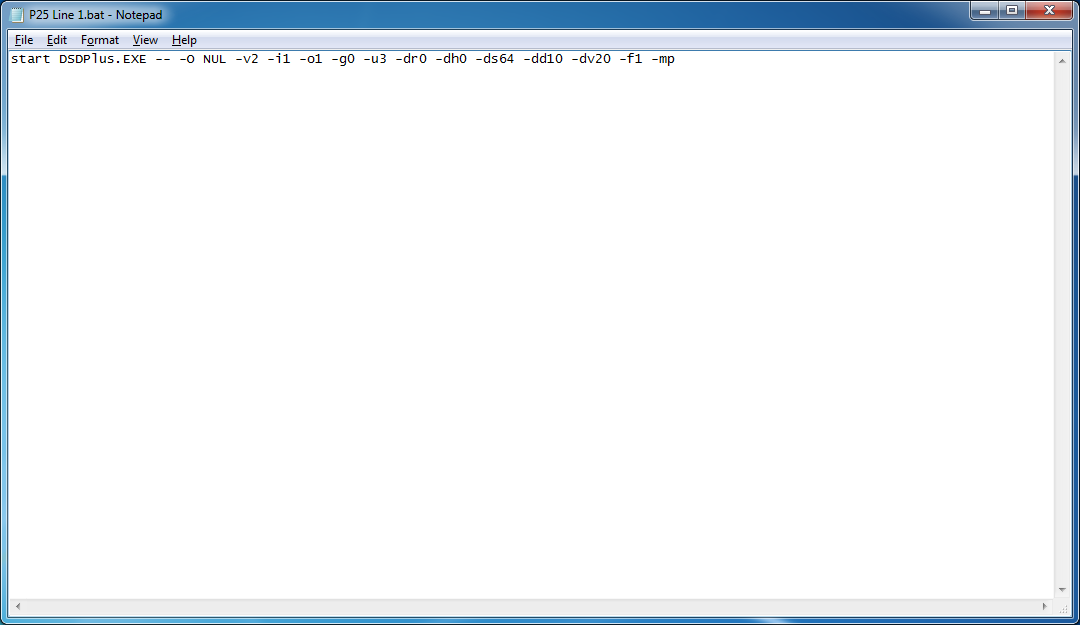

Here are the commands to tell DSDPlus to decode CQPSK P25 modulation.

start DSDPlus.EXE -- -O NUL -v2 -i1 -o1 -g0 -u3 -dr0 -dh0 -ds64 -dd10 -dv20 -f1 -mp

A C4FM site will need to have “-mp” option removed.  If you’re not sure, information will be provided later.

Earlier when the device input and outputs were noted, change these options to that device number:

input: -i#

output: -o#

Click the link below. Copy and paste the line from the text file

P25_Line_1-bat

Change the input and output device numbers.

The parameters above are set to not create any logs or recording files.  To find what these options mean or to change any of them, see the list of DSDPlus Options.

Click the X to close Notepad.

Click Yes to save the changes.

The command line courtesy of the SDR# plugin: GUI interface for DSD+.
