Outline

  • About the Pi & creator
  • Hardware & connectors
  • Operating system
  • Programming languages
  • Projects
  • Find out more

qué es?

The Raspberry Pi is a low cost, credit-card sized computer that plugs into a computer monitor or TV, and uses a standard keyboard and mouse. It is a capable little device that enables people of all ages to explore computing, and to learn how to program in languages like Scratch and Python...

qué es?

...It's capable of doing everything you’d expect a desktop computer to do, from browsing the internet and playing high-definition video, to making spreadsheets, word-processing, and playing games. What’s more, the Raspberry Pi has the ability to interact with the outside world, and has been used in a wide array of digital maker projects.

from: What Is A Raspberry Pi?





Eben Upton, designer of the Raspberry Pi noticed the slide in skill levels while working at Cambridge University's Computer Laboratory in 2006.

Students applying to study computer science had far less experience than previous students.

from: Raspberry Pi for Dummies. img: IBTimes

Eben and his colleagues came up with the idea of creating a computer, that came with necessary tools, sold for $25, was robust enough to survive a children's book bag, that did interesting things, and drew people to use it.

from: Raspberry Pi for Dummies. img: Cambridge Judge Business School

Unintended Consequences

The Raspberry Pi was designed to inspire children to take-up programming, but the vast majority of the £25 computers have been bought by adults.

"The reason we've sold so many of these (over a million) is largely is that they've sold to technology capable adults more than they've sold to kids," Upton said. "We think only 10-20%, maybe 30% of the ones we sold have ended up in the hands of kids."

from: PC Pro

Hardware

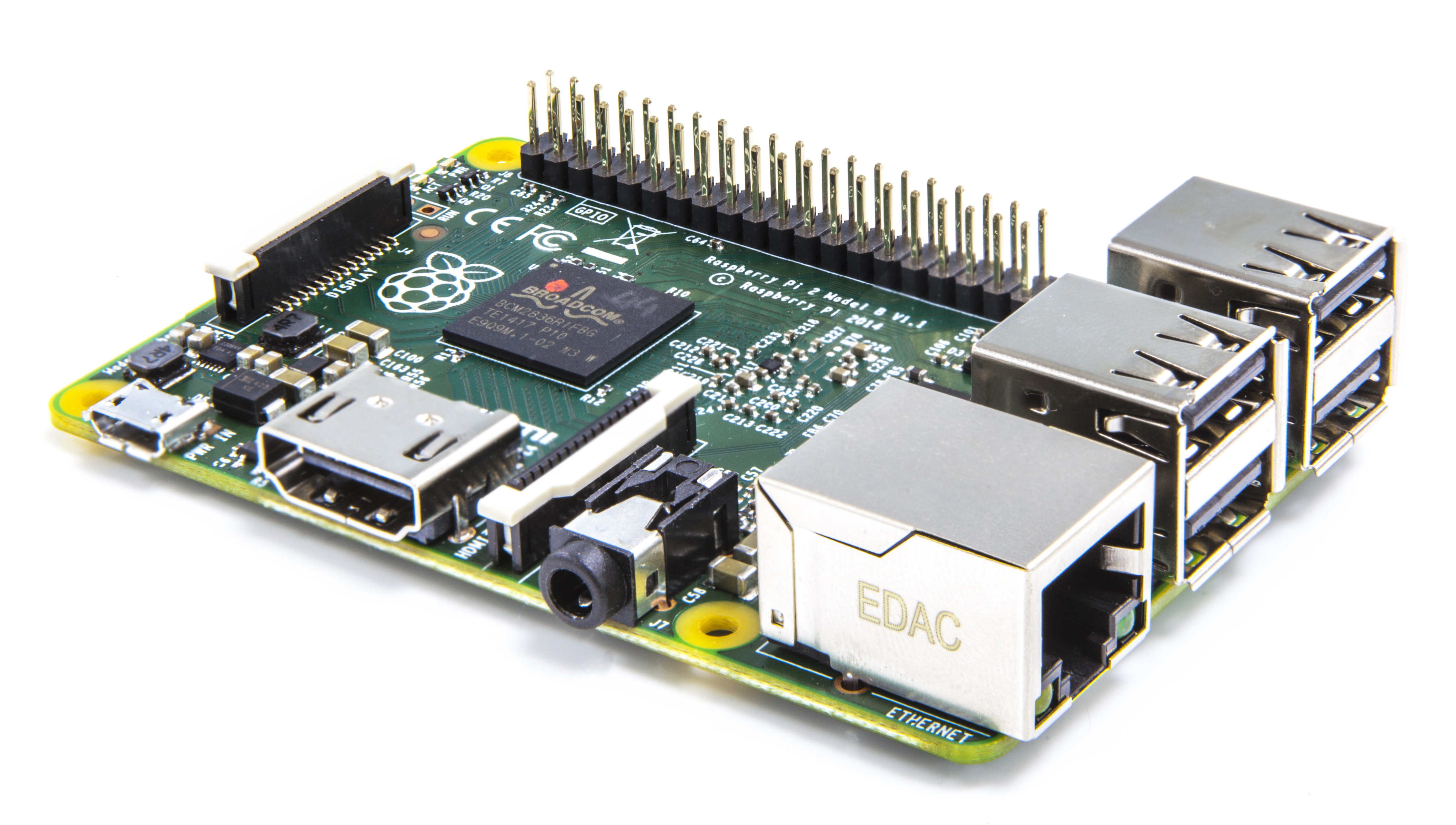

Raspberry Pi 2

img: Raspberry Pi Foundation

Hardware

  • Currently 7 models of Raspberry Pi: A, A+, B, B+, 2, Zero, 3.
  • CPU equivalent to the chip used in older smartphones or a Pentium II processor (late '90s).
  • Graphics equivalent to the Xbox game console (2001).
  • ARM SoC (system on a chip) architecture (tablets & smartphones) which includes: CPU, GPU (graphics), and RAM (256 MB - 1 GB).
  • Overclocking (forcing a component to operate faster than the manufactured clock frequency) is built into the operating system and does not void the warranty.

from: Raspberry Pi for Dummies and Wikipedia

Typical connectors

  • MicroUSB power.
  • 1 - 4 USB connectors.
  • Video camera input.
  • HDMI, RCA or TRRS (tip, ring, ring, sleeve) on audio port for video out.
  • 1/8" audio out.
  • SD (Secure Digital) or MicroSD card for storage.
  • Ethernet networking port (not "A" boards).
  • GPIO (General-purpose input/output).
  • Full list of specifications for each model available on Wikipedia.

from: Wikipedia

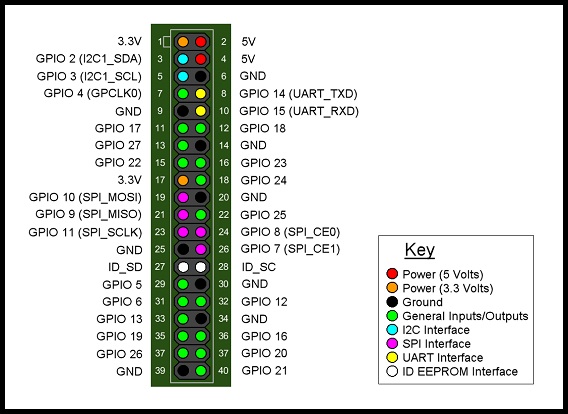

GPIO

Interface the Pi with your own circuits!

  • Headers come in 26 or 40-pin GPIO depending on model.
  • First 26 pins are the same.
  • General purpose input and output via Broadcom BCM2836.
  • I2C is a standard that can talk to other I2C chips (also used in the ID EEPROM).
  • SPI is the Serial Peripheral Interface (sensors, LCD).
  • UART is Universal asynchronous receiver/transmitter (Serial port).

from: Wikipedia

Operating systems

Tux the Penguin
  • Primary operating system is Linux.
  • There are many Linux variants (called distributions) available for the Pi.
    Distributions have various programs, software / hardware libraries, and / or package management system installed along with the Linux Kernel.
  • Raspbian is the recommended RPi distribution.

Dive In, Right?

Not so fast.

The quickest way to get discouraged about something is to have no idea what you are going to do with it... AKA the "now what?" phenomenon.

Figure out a problem you want to solve FIRST before anything else.

Programming

  • Python
  • Scratch (kids)
  • Others?

  • Any language which complies on an ARM chip.
  • Bash shell scripting
  • C/C++
  • Java
  • Ruby
  • Wolfram
  • Graphics
  • Bare metal

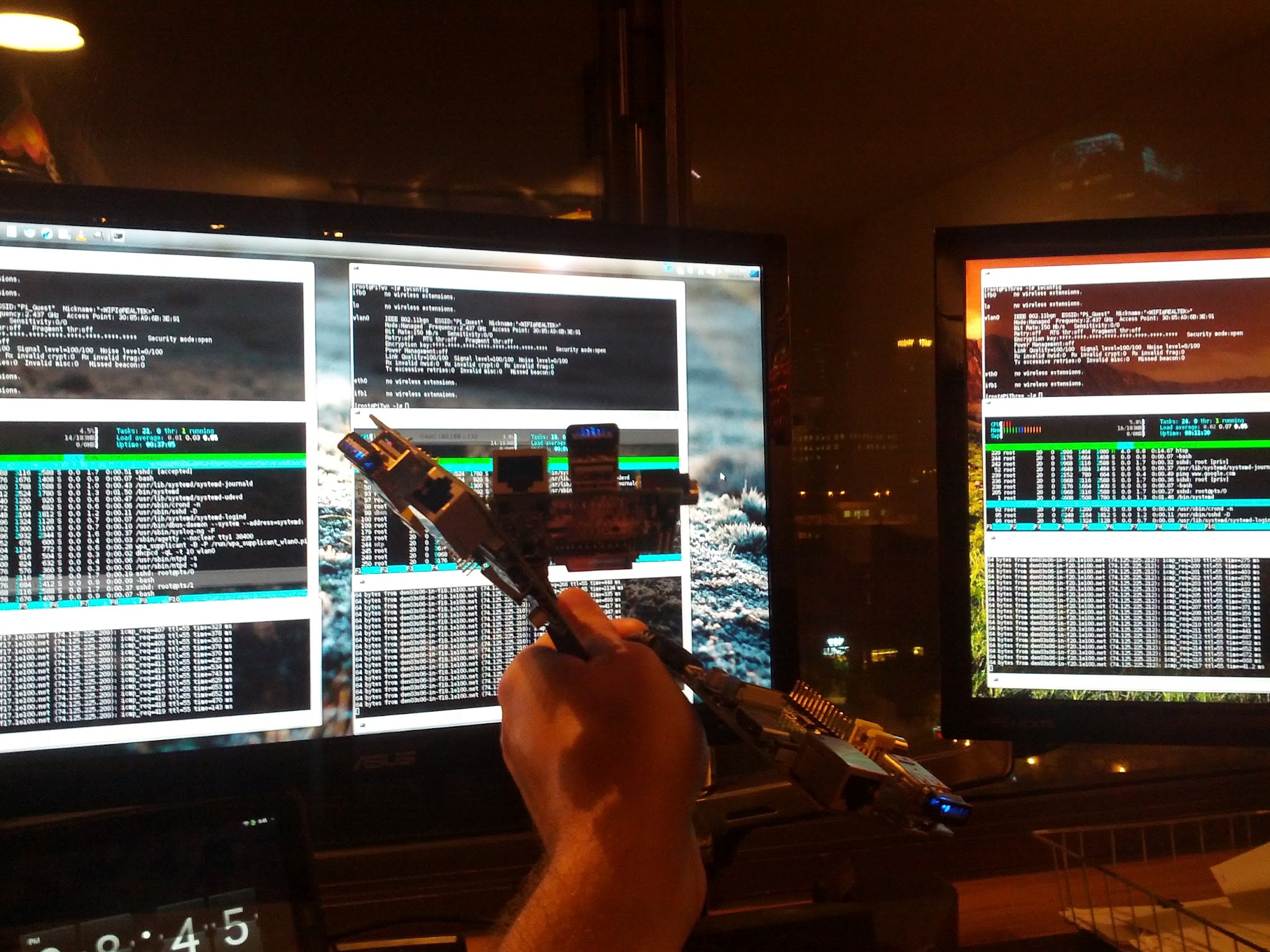

Projects - Usual Linux stuff

Projects - GPIO Christmas Tree

Great for kids!

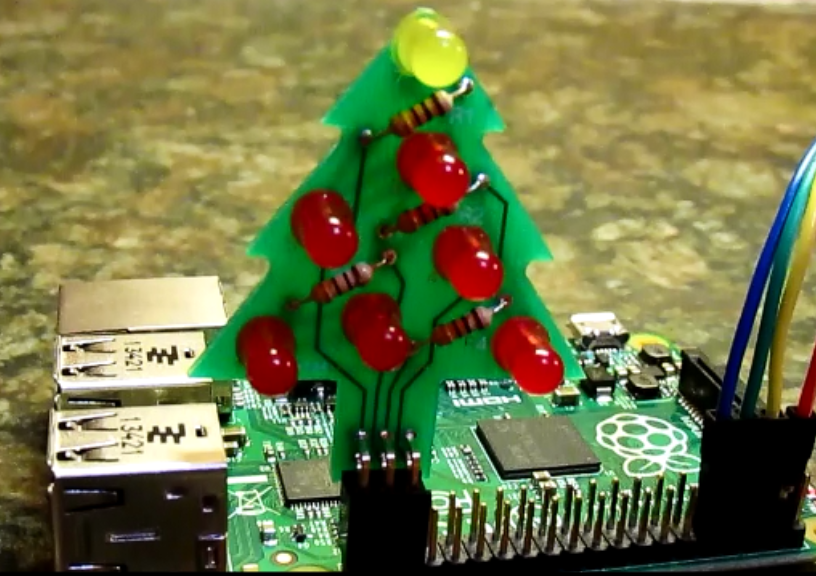

GPIO Christmas Tree

from: pocketmoneytronics

Projects - Ham Radio

Finding out more

  • Dongle Bits articles I wrote for Lake Erie ARA and Wood County ARC.
  • Books: on the Raspberry Pi itself. Programming language books, ones for the Raspberry Pi would be more specific to using the Pi hardware and interfaces.
  • Magazines: hobby magazines. Articles in QST for example.
  • Podcasts: how tos. AmateurLogic.TV, Hak5, Ham Nation.
  • Internet sites, blogs, YouTube: Raspberry Pi forums, Slashdot, Lifehacker, Reddit, YouTube.
  • Search for an interest or project idea. Example:
    APRS Raspberry Pi

THE END
